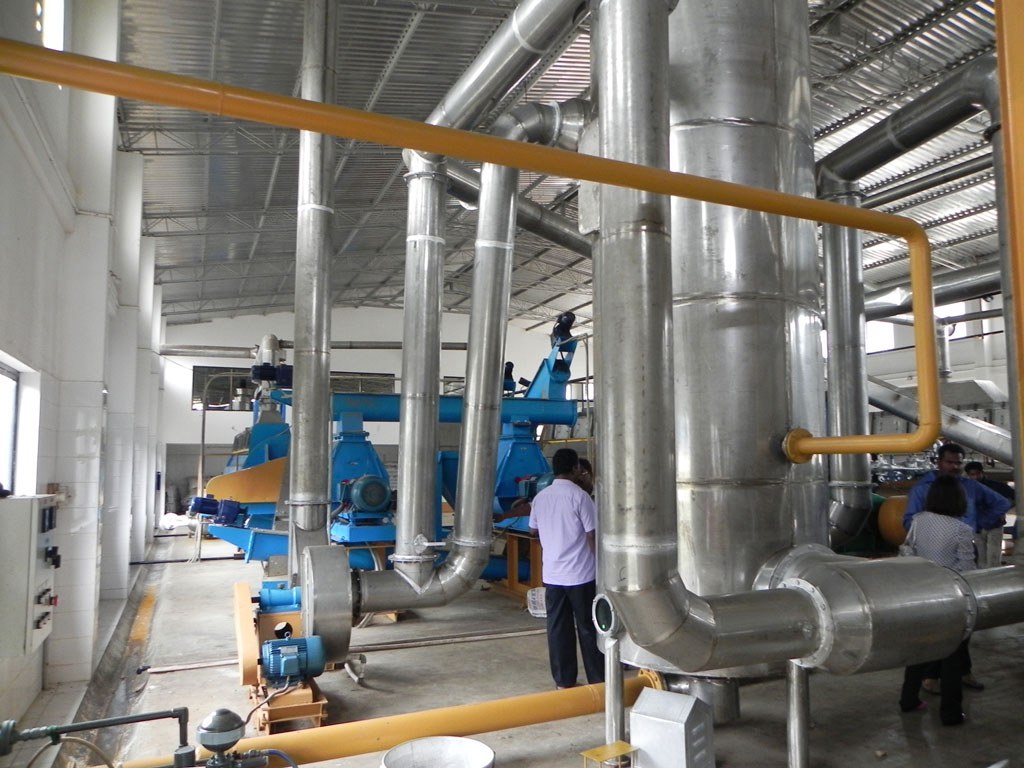

A large-scale commercial marine fishmeal and fish oil processing plant designed and delivered as a complete turnkey project. The facility processes up to 150 metric tons of fresh marine catch per 24 hours into prime-grade animal feed fishmeal and refined industrial fish oil.
Engineering Scope & Processing Modules
The processing line incorporates raw fish storage buffers, continuous indirect steam cookers, high-pressure twin-screw dewatering presses, high-efficiency indirect steam disc dryers, multi-effect falling-film waste heat evaporation systems, high-speed centrifugal oil-water separators, meal rotary cooling drums, automated micro-pulverizers, and multi-stage chemical scrubbing towers for total odor mitigation.
Automated PLC Centralized Control
The entire production line is monitored through a centralized PLC automation supervisory system with temperature, moisture, and throughput telemetry, achieving low energy consumption (≤420 kg steam per ton raw fish) and consistent prime-grade protein retention (≥68{a8bbb5c2a8393dea97cbe9f4154381accecdf9ffb977569b7955fc6e6b23cd1a} crude protein, ≤10{a8bbb5c2a8393dea97cbe9f4154381accecdf9ffb977569b7955fc6e6b23cd1a} moisture).
