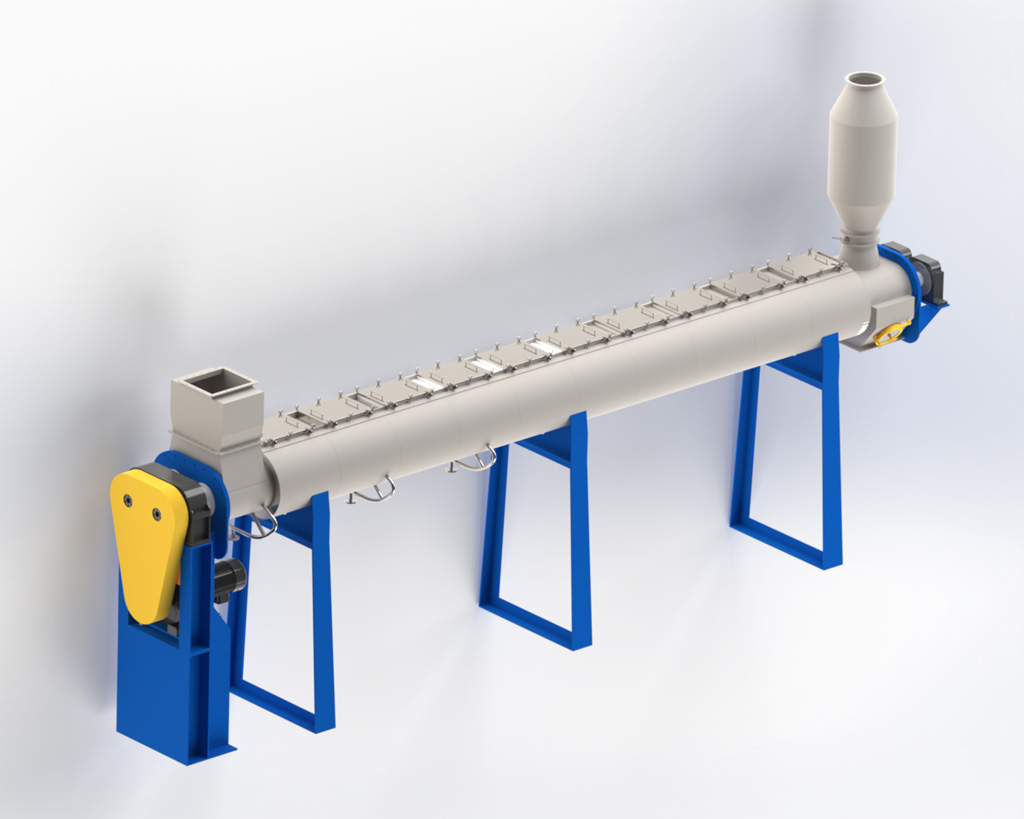

Steam Cooker for Fish Meal & Insect Protein Lines

Cooking

Steam Cooker for Fish Meal & Insect Protein Lines

Continuous indirect steam-jacketed cookers with heated central rotor coils, ensuring uniform protein coagulation and cellular oil release at low specific steam consumption.

Serves: Fishmeal & Fish Oil Insect Protein (BSFL)
Request Quote +86-510-87588788

Product Overview

The Steam Cooker is the primary thermal conditioning unit in fishmeal, BSFL insect meal, and animal rendering plants. Utilizing saturated steam via a hollow spiral blade rotor and jacketed casing, it coagulates cellular proteins and ruptures fat cells at 95°C–100°C to liberate oil and stickwater for downstream screw pressing.

Key Features

  • Simultaneous Rotor Shaft & Shell Interlayer Indirect Heating
  • Variable Frequency Drive (VFD) for 15–20 Min Retention Regulation
  • Anti-Clog Air Outlet Buffer Mechanism Prevents Fugitive Leaks
  • Multiple Metallurgy Options (Carbon Steel Q345, SS304, SS316L, Duplex SS)
  • Auxiliary Direct Steam Injection for Rapid Start-up Conditioning

Working Principle & Structure

Raw fish or washed BSFL larvae are fed into the cooker by a speed-controlled screw. Saturated steam (0.4–0.6 MPa) heats both the central hollow spiral rotor and the outer shell jacket. As the material is gently conveyed, uniform thermal conduction coagulates proteins and bursts fat cells within 15–20 minutes, converting the raw biomass into an easily dewaterable mash.

Industrial Applications & Turnkey Lines

Turnkey Production Line

Skid-Mounted Fish Oil Refining & Deacidification Plant

Continuous 1–10…

Explore Line Flow
Turnkey Production Line

BSFL Insect Meal & Oil Turnkey Line

Turnkey process…

Explore Line Flow
Turnkey Production Line

Insect Farming Equipment Package

Focused on BSF …

5 – 100 T/Day feedstock class Explore Line Flow
Turnkey Production Line

Fishmeal & Fish Oil Production Line

Turnkey fishmea…

Explore Line Flow

Technical Parameters

Heat Source Saturated steam (0.4 – 0.6 MPa)
Cooking Temp 95°C – 100°C
Retention Time 15 – 20 minutes
Rotor Heating Hollow spiral blade shaft
Material Options Carbon Steel / SS304 / SS316L / Duplex SS
Capacity Range 50 – 500 MT/24h

Models & Capacity Specifications

Scroll table horizontally
Model Capacity Dimensions (mm) Power (kW) Weight (t) Note
FMC-50 50 MT/24h 6800 × 1400 × 1700 mm 3.0 kW 5.8 t Carbon steel / 304 / 316L / Duplex SS
FMC-80 80 MT/24h 7800 × 1400 × 1700 mm 3.0 kW 6.3 t Carbon steel / 304 / 316L / Duplex SS
FMC-100 100 MT/24h 7800 × 1100 × 1700 mm 5.5 kW 7.5 t Carbon steel / 304 / 316L / Duplex SS
FMC-150 150 MT/24h 8900 × 1400 × 1800 mm 5.5 kW 9.5 t Carbon steel / 304 / 316L / Duplex SS
FMC-300 300 MT/24h 11500 × 1700 × 2000 mm 11.0 kW 16.0 t Carbon steel / 304 / 316L / Duplex SS
FMC-500 500 MT/24h 13000 × 1900 × 2300 mm 18.5 kW 25.0 t Carbon steel / 304 / 316L / Duplex SS

Where This Equipment Fits

Shows which stage of an insect meal line this machine usually sits in — so you can match it with cooker, press, dryer and packing modules.

1 Prep / Feed
2 Cook / Soften
3 This Equipment
4 Finish / Pack

Receives raw fish or washed BSFL from the feeding hopper; prepares cooked mash at 95–100°C for the Twin Screw Press.

FAQ

Why is steam cooking essential before pressing?
Cooking coagulates raw proteins and ruptures fat cells. Without adequate cooking (95–100°C), presscake remains gelatinous and wet, leading to slippage and poor oil separation in the screw press.
Can this cooker handle high-viscosity BSFL insect larvae?
Yes. The hollow spiral blades provide continuous agitation and positive displacement, ensuring homogeneous cooking without hot spots or burning.
What is the standard delivery and manufacturing lead time for this equipment?
Standard manufacturing lead time is 45 to 60 days depending on metallurgy and capacity specifications. Rush assembly options are available for ongoing plant projects.
