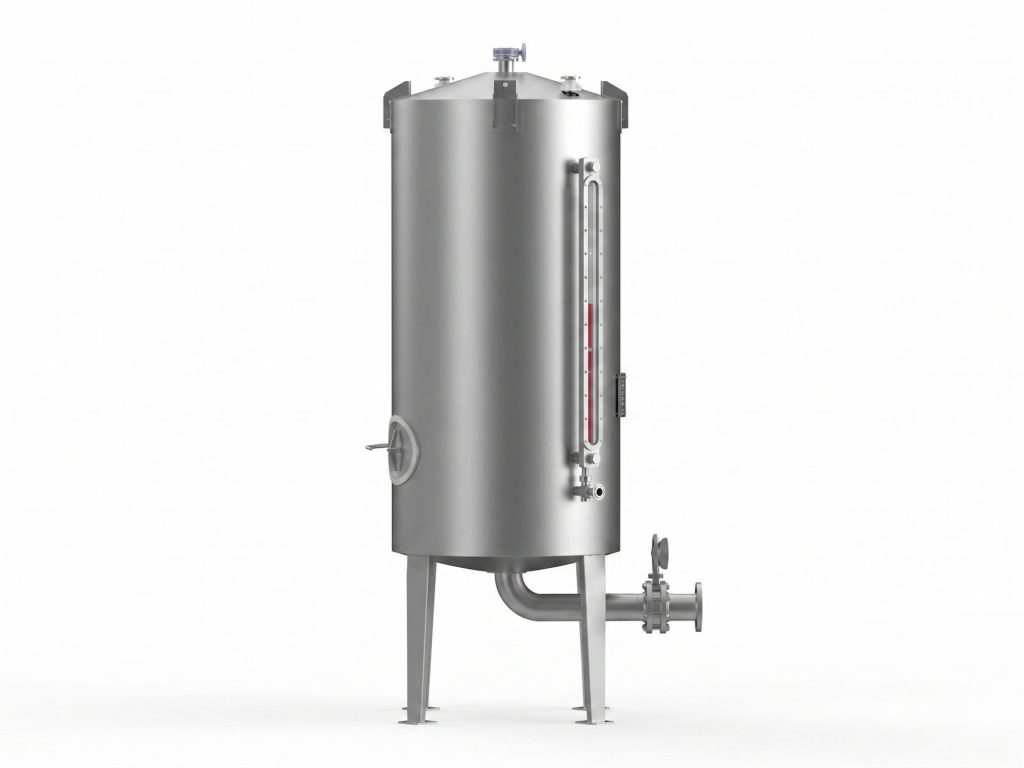

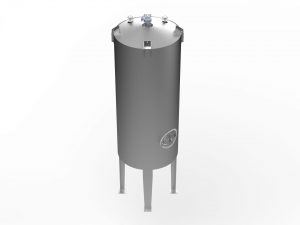

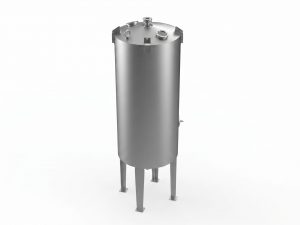

Crude Fish & Insect Oil Storage Tank

Oil Press & Extraction Complete Plant

Crude Fish & Insect Oil Storage Tank

Heavy-duty insulated crude fish oil and insect lipid storage tanks featuring bottom steam heating coils, nitrogen blanketing, and automated bulk road-tanker loading pumps.

Serves: Fishmeal & Fish Oil Insect Protein (BSFL)
Request Quote +86-510-87588788

Product Overview

The Crude Fish & Insect Oil Storage Tank is a large-volume vertical storage and bulk loading reservoir engineered for clarified fish oil and insect lipids. Featuring bottom steam heating coils, nitrogen blanketing ports, and sampling taps, it preserves lipid quality and prevents oxidation.

Key Features

  • Industrial-grade steel structure for continuous 24/7 duty
  • PLC / HMI control options for stable process parameters
  • Designed for insect meal lines; configurable for other protein plants
  • Factory installation guidance and spare-parts support

Working Principle & Structure

Pure clarified oil discharged from disc separators is pumped into the storage tank. Low-pressure steam coils maintain the oil at 35–45°C during cold seasons to prevent stearin solidification. An automatic tanker loading pump transfers bulk oil directly into export road tankers or ISO tank containers.

Industrial Applications & Turnkey Lines

Turnkey Production Line

Skid-Mounted Fish Oil Refining & Deacidification Plant

Continuous 1–10…

Explore Line Flow
Turnkey Production Line

BSFL Insect Meal & Oil Turnkey Line

Turnkey process…

Explore Line Flow
Turnkey Production Line

Insect Farming Equipment Package

Focused on BSF …

5 – 100 T/Day feedstock class Explore Line Flow
Turnkey Production Line

Fishmeal & Fish Oil Production Line

Turnkey fishmea…

Explore Line Flow

Technical Parameters

Storage Capacity 10 – 100 MT (10 – 110 m³)
Heating Media Low-Pressure Steam / Thermal Oil Coils
Insulation 50mm Rockwool + SS304 Cladding Sheet
Vessel Shell Stainless Steel SS304 / SS316L
Tank Orientation Vertical Cylindrical with Conical Bottom

Where This Equipment Fits

Shows which stage of an insect meal line this machine usually sits in — so you can match it with cooker, press, dryer and packing modules.

1 Prep / Feed
2 Cook / Soften
3 This Equipment
4 Finish / Pack

Modules are selected by function and can be combined into insect meal, fishmeal or rendered animal protein lines.

FAQ

How does the storage tank prevent fish oil acidity (AV) from rising?
By maintaining airtight nitrogen blanketing, complete moisture-free separation, and low-temperature thermal control, fat hydrolysis and oxidation are halted.
Is heating necessary for insect lipid storage?
Yes, BSFL insect oil has a higher lauric acid melting point (~30°C) and requires mild heating in temperate regions to stay pumpable.
Can we monitor oil inventory remotely in real-time?
Yes, integrated 4-20mA radar level transmitters and digital temperature probes connect to your plant DCS/SCADA system.
