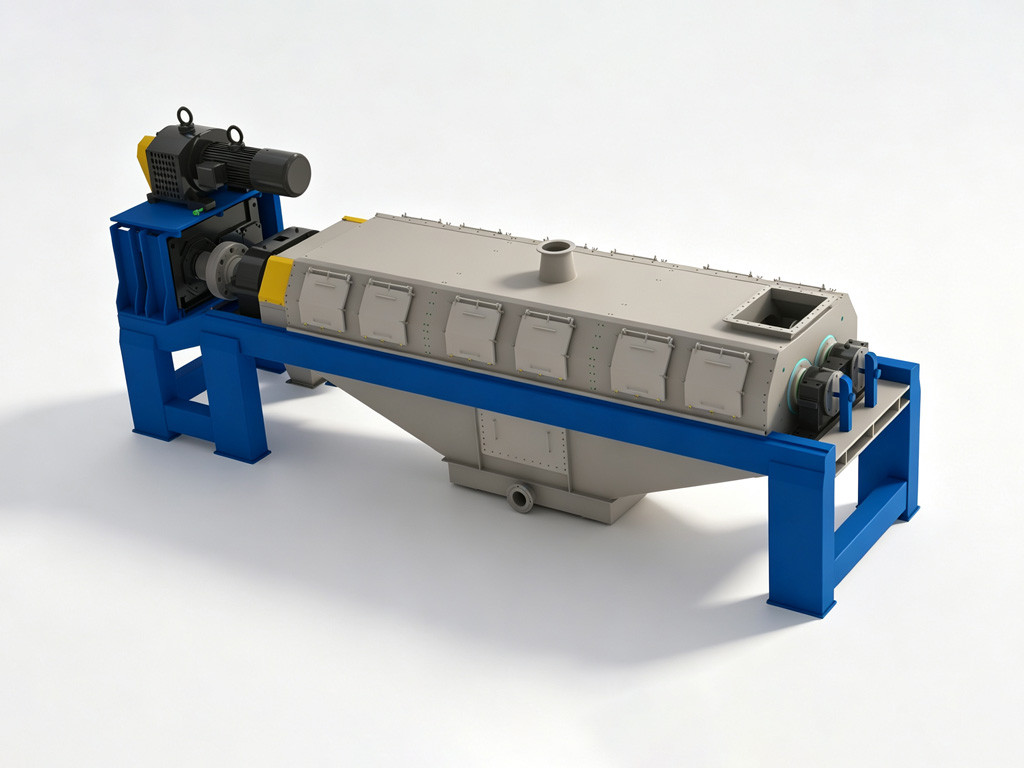

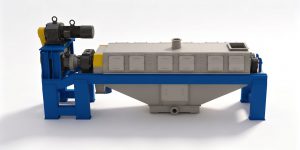

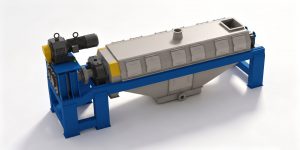

Twin Screw Press for Fish Meal & Insect Oil Extraction

Oil Press & Extraction

Twin Screw Press for Fish Meal & Insect Oil Extraction

High-compression twin-screw dewatering presses engineered for maximum mechanical moisture and lipid extraction from cooked fish, insect larvae, and animal tissue.

Serves: Fishmeal & Fish Oil Insect Protein (BSFL)
Request Quote +86-510-87588788

Product Overview

The FMP Series Twin Screw Press is a heavy-duty mechanical liquid-solid separation machine designed for fishmeal, BSFL insect meal, and animal rendering plants. With intermeshing conical twin screws, it eliminates slippage and reduces presscake moisture consistently below 50{a8bbb5c2a8393dea97cbe9f4154381accecdf9ffb977569b7955fc6e6b23cd1a}.

Key Features

  • Industrial-grade steel structure for continuous 24/7 duty
  • PLC / HMI control options for stable process parameters
  • Designed for insect meal lines; configurable for other protein plants
  • Factory installation guidance and spare-parts support

Working Principle & Structure

Cooked mash enters the intake chamber and is conveyed forward by twin interlocking conical screws. As the volume between flights continuously decreases, intense mechanical extrusion expresses stickwater and oil through the perforated screen cage, while solid presscake is discharged at moisture <50{a8bbb5c2a8393dea97cbe9f4154381accecdf9ffb977569b7955fc6e6b23cd1a}.

Industrial Applications & Turnkey Lines

Turnkey Production Line

Skid-Mounted Fish Oil Refining & Deacidification Plant

Continuous 1–10…

Explore Line Flow
Turnkey Production Line

BSFL Insect Meal & Oil Turnkey Line

Turnkey process…

Explore Line Flow
Turnkey Production Line

Insect Farming Equipment Package

Focused on BSF …

5 – 100 T/Day feedstock class Explore Line Flow
Turnkey Production Line

Fishmeal & Fish Oil Production Line

Turnkey fishmea…

Explore Line Flow

Models & Capacity Specifications

Scroll table horizontally
Model Capacity Dimensions (mm) Power (kW) Note
FMP-50 50 MT/24h 5500 × 1500 × 1600 mm 11.0 kW Carbon steel / 304 / 316L / Duplex SS
FMP-80 80 MT/24h 5800 × 1500 × 1600 mm 15.0 kW Carbon steel / 304 / 316L / Duplex SS
FMP-100 100 MT/24h 5800 × 1500 × 1600 mm 18.5 kW Carbon steel / 304 / 316L / Duplex SS
FMP-150 150 MT/24h 6300 × 1600 × 1700 mm 22.0 kW Carbon steel / 304 / 316L / Duplex SS
FMP-300 300 MT/24h 7000 × 1800 × 1900 mm 37.0 kW Carbon steel / 304 / 316L / Duplex SS
FMP-500 500 MT/24h 8000 × 2000 × 2200 mm 75.0 kW Carbon steel / 304 / 316L / Duplex SS

Where This Equipment Fits

Shows which stage of an insect meal line this machine usually sits in — so you can match it with cooker, press, dryer and packing modules.

1 Prep / Feed
2 Cook / Soften
3 This Equipment
4 Finish / Pack

Receives cooked material from the Steam Cooker; separates liquid press water (oil + stickwater) from presscake before drying.
