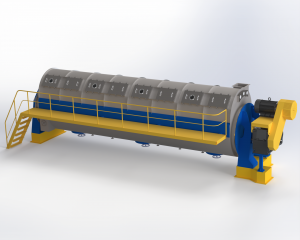

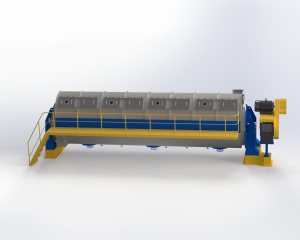

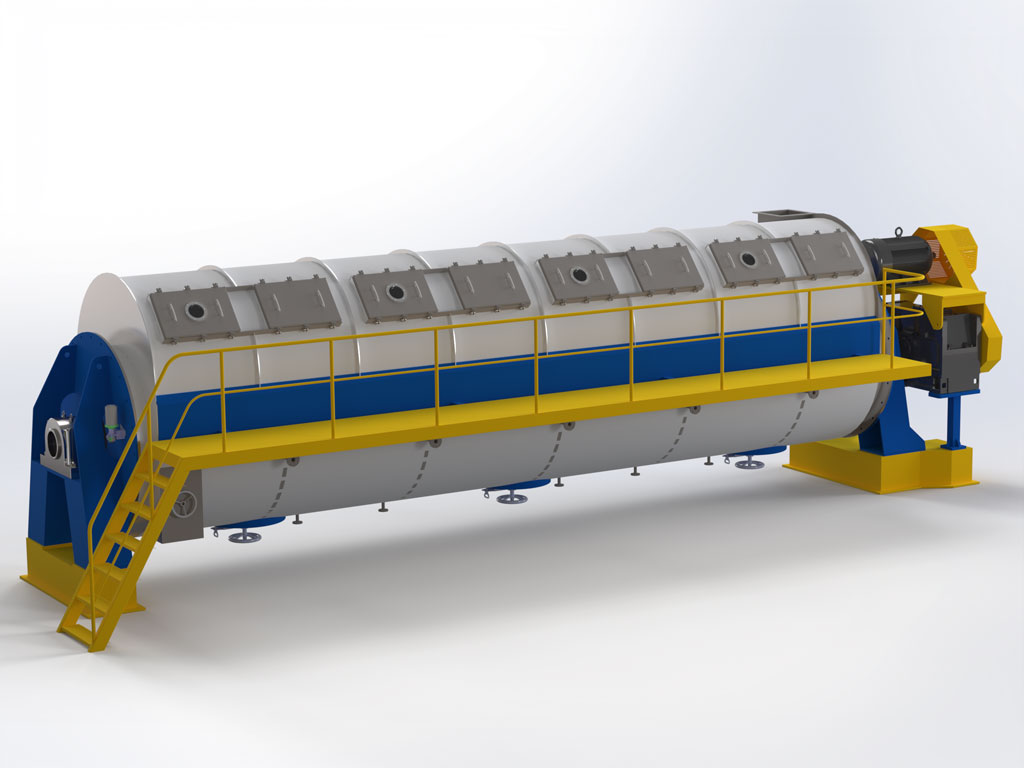

Disc Dryer for Insect Meal & Protein Lines

Dryer

Disc Dryer for Insect Meal & Protein Lines

Continuous rotating steam disc dryers providing massive heating surface area in a compact footprint, ideal for 24/7 industrial fishmeal, BSFL, and rendering drying.

Serves: Fishmeal & Fish Oil Insect Protein (BSFL)
Request Quote +86-510-87588788

Product Overview

The FMD Series Disc Dryer is an indirect steam contact dryer engineered for high-capacity fishmeal, BSFL insect meal, and animal rendering plants. Featuring a patented hidden weld-seam spindle and double-disc geometry, it provides gentle low-temperature evaporation (<95°C) to preserve protein digestibility.

Key Features

  • Industrial-grade steel structure for continuous 24/7 duty
  • PLC / HMI control options for stable process parameters
  • Designed for insect meal lines; configurable for other protein plants
  • Factory installation guidance and spare-parts support

Working Principle & Structure

The disc dryer operates under indirect steam heating (rated 0.6 MPa). Saturated steam fills the central rotor and all double-discs. Materials slowly advance at 10–12 rpm via outer pusher blades. Continuous inter-disc scrapers agitate the meal bed, evaporating moisture smoothly under a slight negative pressure draft hood.

Industrial Applications & Turnkey Lines

Turnkey Production Line

Skid-Mounted Fish Oil Refining & Deacidification Plant

Continuous 1–10…

Explore Line Flow
Turnkey Production Line

BSFL Insect Meal & Oil Turnkey Line

Turnkey process…

Explore Line Flow
Turnkey Production Line

Insect Farming Equipment Package

Focused on BSF …

5 – 100 T/Day feedstock class Explore Line Flow
Turnkey Production Line

Fishmeal & Fish Oil Production Line

Turnkey fishmea…

Explore Line Flow

Models & Capacity Specifications

Scroll table horizontally
Model Capacity Diameter / Disc Ø Dimensions (mm) Power (kW) Heating Area (m²) Note
FMD-50 50 MT/24h Ø 1200 mm 7600 × 2000 × 2850 mm 37 kW 96 m² Carbon steel / 304 / 316L / Duplex SS
FMD-80 80 MT/24h Ø 1450 mm 8300 × 2500 × 3100 mm 45 kW 158 m² Carbon steel / 304 / 316L / Duplex SS
FMD-100 100 MT/24h Ø 1450 mm 10000 × 2500 × 3100 mm 55 kW 198 m² Carbon steel / 304 / 316L / Duplex SS
FMD-150 150 MT/24h Ø 1700 mm 11200 × 2500 × 3200 mm 75 kW 261 m² Carbon steel / 304 / 316L / Duplex SS
FMD-200 200 MT/24h Ø 1950 mm 11800 × 3000 × 3500 mm 110 kW 350 m² Carbon steel / 304 / 316L / Duplex SS

Where This Equipment Fits

Shows which stage of an insect meal line this machine usually sits in — so you can match it with cooker, press, dryer and packing modules.

1 Prep / Feed
2 Cook / Soften
3 This Equipment
4 Finish / Pack

Receives dewatered presscake (~50{a8bbb5c2a8393dea97cbe9f4154381accecdf9ffb977569b7955fc6e6b23cd1a} moisture) from the Screw Press; dries meal continuously down to ≤10{a8bbb5c2a8393dea97cbe9f4154381accecdf9ffb977569b7955fc6e6b23cd1a} moisture before cooling.

FAQ

How does the FMD disc dryer protect protein nutritional value?
By utilizing indirect saturated steam and gentle vacuum vapor extraction, drying temperature is kept below 95°C. This avoids protein overheating, preserving digestible amino acids such as lysine, methionine, and cysteine.
What is the advantage of the hidden weld-seam design?
Traditional dryers have exposed rotor welds that wear down rapidly when rubbing against bone meal and fibrous insect presscake. Our design covers all critical seams, virtually eliminating weld failure and rotor leaks.
What is the standard delivery and manufacturing lead time for this equipment?
Standard manufacturing lead time is 45 to 60 days depending on metallurgy and capacity specifications. Rush assembly options are available for ongoing plant projects.
