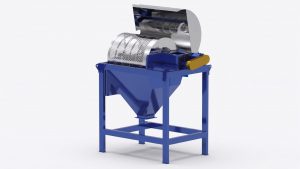

Spiral Vibrating Elevator & Sieve Machine

Grinding & Packing Cooling

Spiral Vibrating Elevator & Sieve Machine

Compact vertical spiral vibrating elevator screens providing gentle upwards conveyance, ambient/chilled air cooling, and simultaneous dust sifting for BSFL dried larvae and pellets.

Serves: Fishmeal & Fish Oil Insect Protein (BSFL) Meat, Bone & Feather Meal
Request Quote +86-510-87588788

Product Overview

The Spiral Vibrating Elevator & Screen combines vertical spiral material elevation with simultaneous continuous air cooling and particle dedusting in a compact vertical footprint. Ideal for BSFL dried larvae, insect protein granules, and pressed meal pellets.

Key Features

  • Combines Vertical Elevation, Cooling & Dust Screening in a Single Machine
  • Extremely Small Floor Footprint Compared to Long Inclined Belt Conveyors
  • Gentle Vibratory Upward Conveyance Prevents Fragile Insect Particle Breakage
  • Optional Chilled Air Injection Jets for Accelerated Spiral Cooling
  • Sanitary Stainless Steel SS304/SS316L Spiral Flighting with Quick-Clean Access

Working Principle & Structure

Dual synchronized unbalance motors impart a helical vibratory motion to the central spiral tower. Dried larvae or pellets hop upward along the inclined spiral flighting. Ambient or chilled air blown across the open flighting cools the product while perforated deck sections sift out fine dust before discharge.
