Meal Cooler Machine for Protein Powder

Cooling

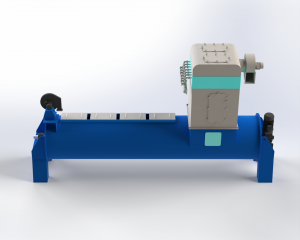

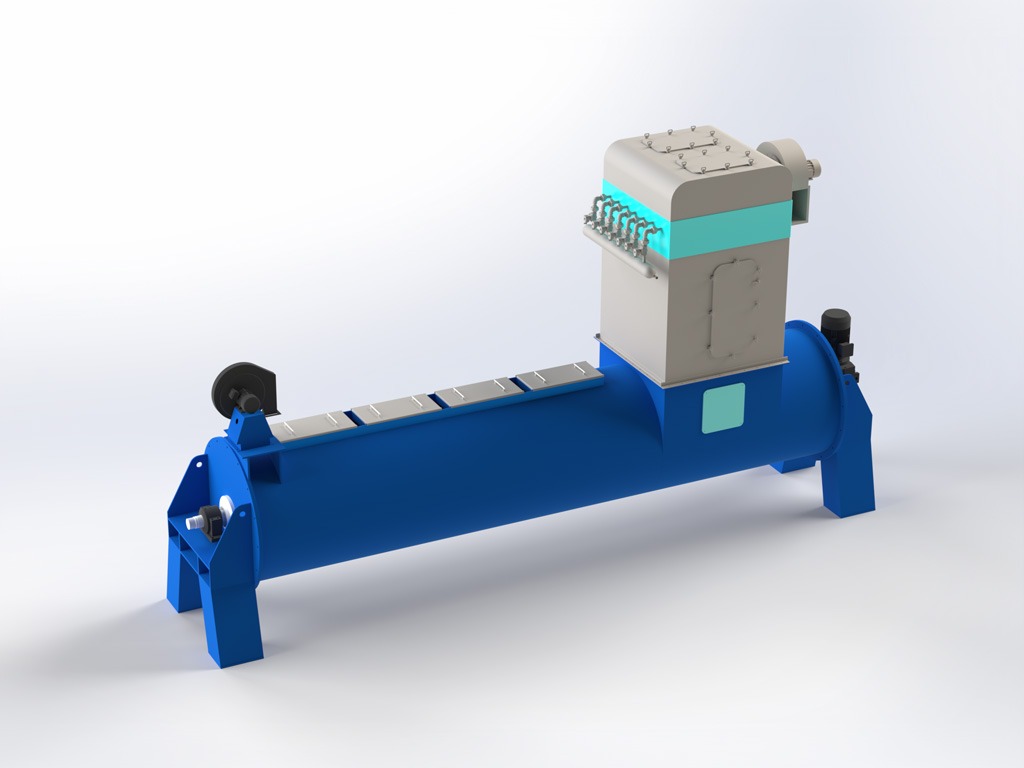

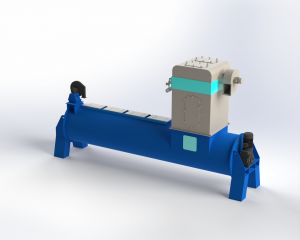

Meal Cooler Machine for Protein Powder

Extended rotary drum meal cooling machines delivering uniform counter-current air cooling down to 40°C, preventing post-packaging thermal caking and fat oxidation.

Serves: Fishmeal & Fish Oil Insect Protein (BSFL) Meat, Bone & Feather Meal
Request Quote +86-510-87588788

Product Overview

The FMCO Series Meal Cooler Machine is a continuous cooling and stabilization workstation engineered for fishmeal, black soldier fly larvae meal, shrimp meal, and meat & bone meal. By uniformly lowering meal temperature below 40°C post-drying, it prevents quality loss, amino acid scorching, and self-heating degradation before fine grinding and packaging.

Key Features

  • Uniform & Continuous Counter-Current Air Cooling Process
  • High Degree of Automation with Adjustable Retention Time
  • Optional Air Chilling Device for Tropical & High-Humidity Plants
  • Compact Floor-Mounted Design with No Concrete Foundation Required
  • Prevents Heat Caking, Fat Oxidation & Post-Packaging Quality Loss

Working Principle & Structure

Hot dried meal discharge from the disc dryer enters the rotary cooler cylinder. As the drum rotates at a gentle incline, internal lifter flights shower the meal through a high-volume counter-current ambient or chilled air stream. Heat and residual moisture vapors are drawn out through the cyclone dust collector, discharging stabilized meal at safe bagging temperatures.

Industrial Applications & Turnkey Lines

Turnkey Production Line

Skid-Mounted Fish Oil Refining & Deacidification Plant

Continuous 1–10…

Explore Line Flow
Turnkey Production Line

BSFL Insect Meal & Oil Turnkey Line

Turnkey process…

Explore Line Flow
Turnkey Production Line

Insect Farming Equipment Package

Focused on BSF …

5 – 100 T/Day feedstock class Explore Line Flow
Turnkey Production Line

Fishmeal & Fish Oil Production Line

Turnkey fishmea…

Explore Line Flow

Technical Parameters

Cooling Length 9,000 mm (9m Extended Drum)
Motor Power 11 – 21 kW
Drum Diameter Ø 1000 – 1500 mm
Output Temp < 40°C (Ambient Stable)
Material Carbon Steel / SS304 / SS316L

Models & Capacity Specifications

Scroll table horizontally
Model Dimensions (mm) Power (kW) Material Note
FMCO-1000*8 9000 × 1900 × 2200 11 Carbon steel / 304 / 316L / Duplex SS Ø1000mm × 9m Standard
FMCO-1200*8 9000 × 2100 × 2400 15 Carbon steel / 304 / 316L / Duplex SS Ø1200mm × 9m High Output
FMCO-1400*8 9000 × 2300 × 2600 18.5 Carbon steel / 304 / 316L / Duplex SS Ø1400mm × 9m Heavy Duty
FMCO-1500*8 9000 × 2500 × 2800 21 Carbon steel / 304 / 316L / Duplex SS Ø1500mm × 9m Mega Plant

Where This Equipment Fits

Shows which stage of an insect meal line this machine usually sits in — so you can match it with cooker, press, dryer and packing modules.

1 Prep / Feed
2 Cook / Soften
3 This Equipment
4 Finish / Pack

Between dryer and grinder / packing.

FAQ

Why cool before packing?
Protects protein quality and avoids bag condensation / spoilage risk.
What is the standard delivery and manufacturing lead time for this equipment?
Standard manufacturing lead time is 45 to 60 days depending on metallurgy and capacity specifications. Rush assembly options are available for ongoing plant projects.
Does FEEDS MACHINERY provide on-site installation and overseas commissioning support?
Yes, our senior mechanical and electrical engineers provide complete on-site installation guidance, commissioning, plant load testing, and operator training worldwide.
